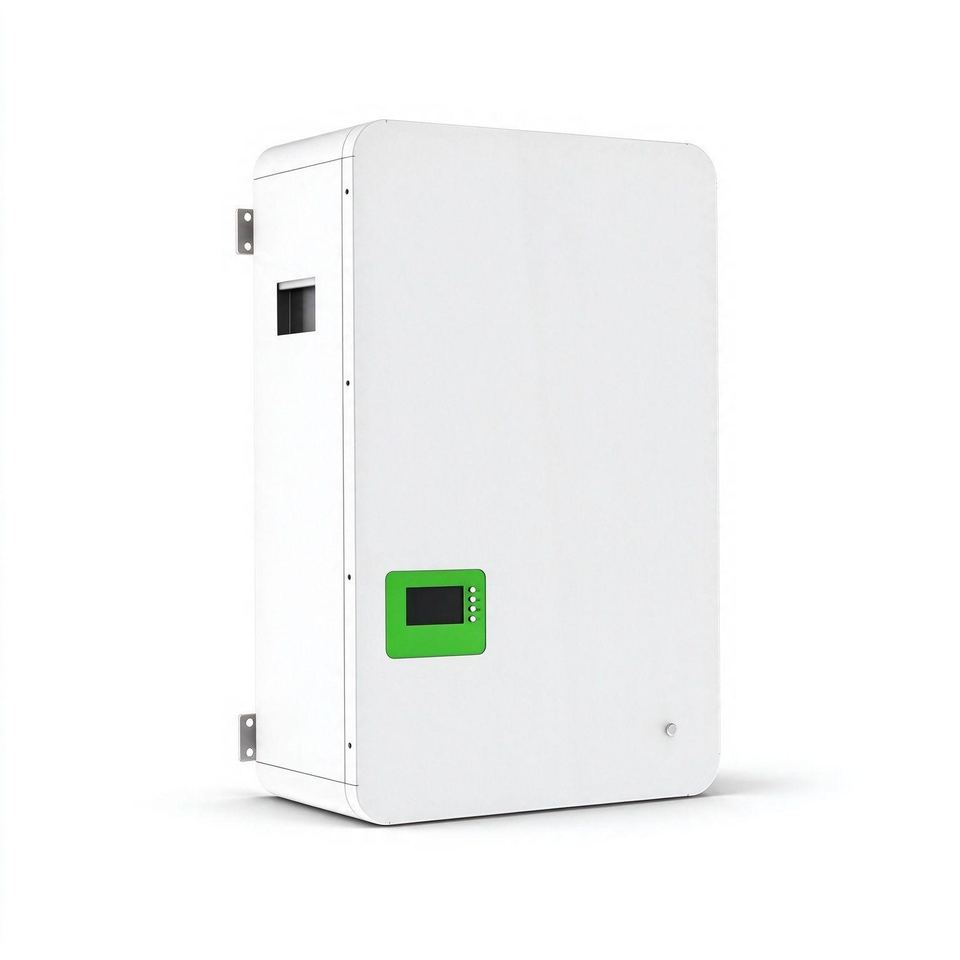

280.0Ah Residential Energy Storage System with 3 Years Warranty and Compact Design
280.0Ah residential ESS battery with 3 years warranty and a compact footprint, ideal for home energy storage with wall-mounted or floor-standing installation.
Specifications
Nominal Capacity
280.0Ah (Standard charge/discharge)
Nominal Voltage
51.2V (Average)
Standard Charging (Refer to 5.1)
Constant current 100A, Constant voltage 57.6V, End current (Cut off) 14A
Charging Voltage
57.6V
Max. Continuous Charge Current
200.0A (25±3°C)
Standard Discharging (Refer to 5.2)
Constant current 140.0A, End voltage (Cut off) 43.2V
Max Continuous Discharge Current
200.0A (25±3°C)
Nominal Energy
14.336kWh (25±3°C)
Available Energy
12.9kWh (25±3°C)
Operating Temperature - Charge
0°C ~ 55°C
